DE HAVILLAND X10000 FULLY APPROVED SPRAY BOOTH
 |
|

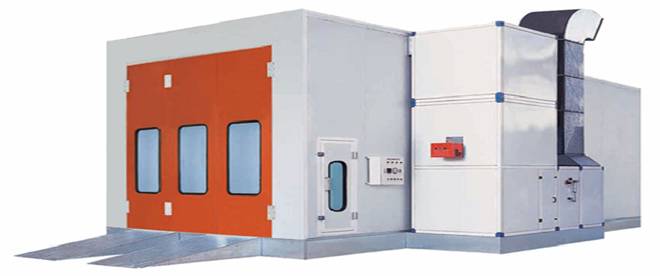

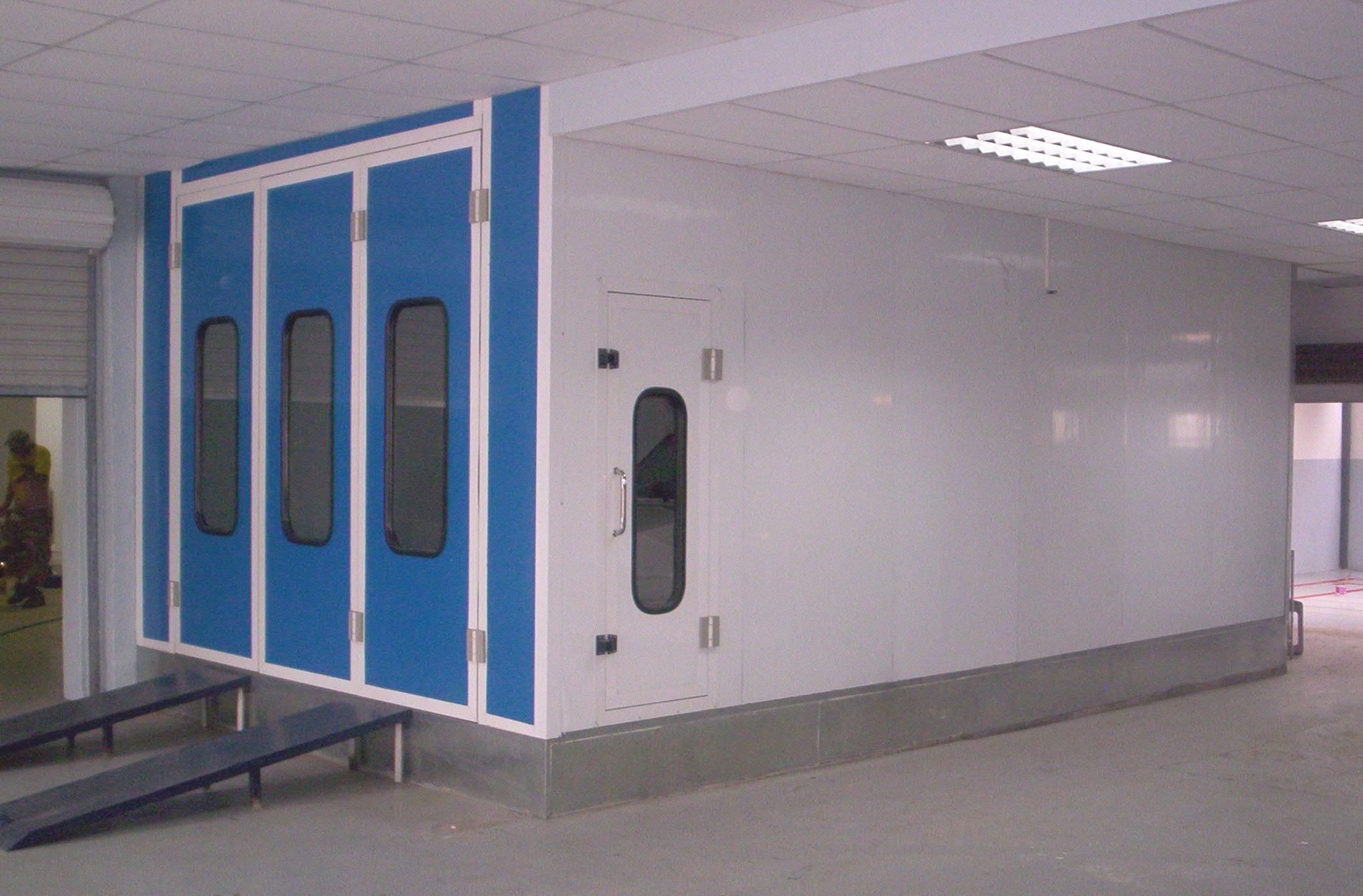

DE HAVILLAND X12000 SPRINTER / VAN SPRAY BOOTH
|
|
|
|
External size (m) |
8.7x5.63x4.23 |
|
Internal size (m) |
8.6x4.0x3.4 |
|
Entrance Width(M) |
3.0 |
|
Entrance Height(M) |
3.35 |
|
Fan capacity(m3/h) |
35000 |
|
Air velocity (m/s) |
0.25-0.3 |
|
Air ventilation (times/h) |
332 |
|
Oil consumption (L/unit) MAX DRYING TEMP |
6-8 60 – 80 DEG CELCIUS |
|
Power (kw) |
13 |
|
Suitable Automobile Type |
Mid-size-car / SPRINTER |
--Wall panel: sandwich style, g=50mm, polystyrene.
--Basement: steel structure, 3 rows of vein board and 2 rows of grids, full grids as optional.
--Doors: 3 piece front doors without aluminum side cover. 1 emergency door with pressure lock.
--Basement: steel structure, 3 rows of vein board and 2 rows of grids, full grids as optional.
--Ramp: 2 pcs vein board
--One 11kw intake fan
--5m straight exhaust ducts, one 90° bend, and one 60° bend.5m straight chimney and 2 small bends.
--Damper changer of painting and drying: changed automatically with cylinder- link driving.
--Heat exchanger: stainless steel. Riello/ G20S burner.
--
Roof filters: 5 filters, mounted above support frame which is made of steel and powder coated.
--2 floor filters and 1 outlet filter.
--Control box: imported components, overload, overheat, phase-lacking, phase-locking protection, engine Y/△ start. .--Automatic stop when preset time is up.
--Constant temperature spraying

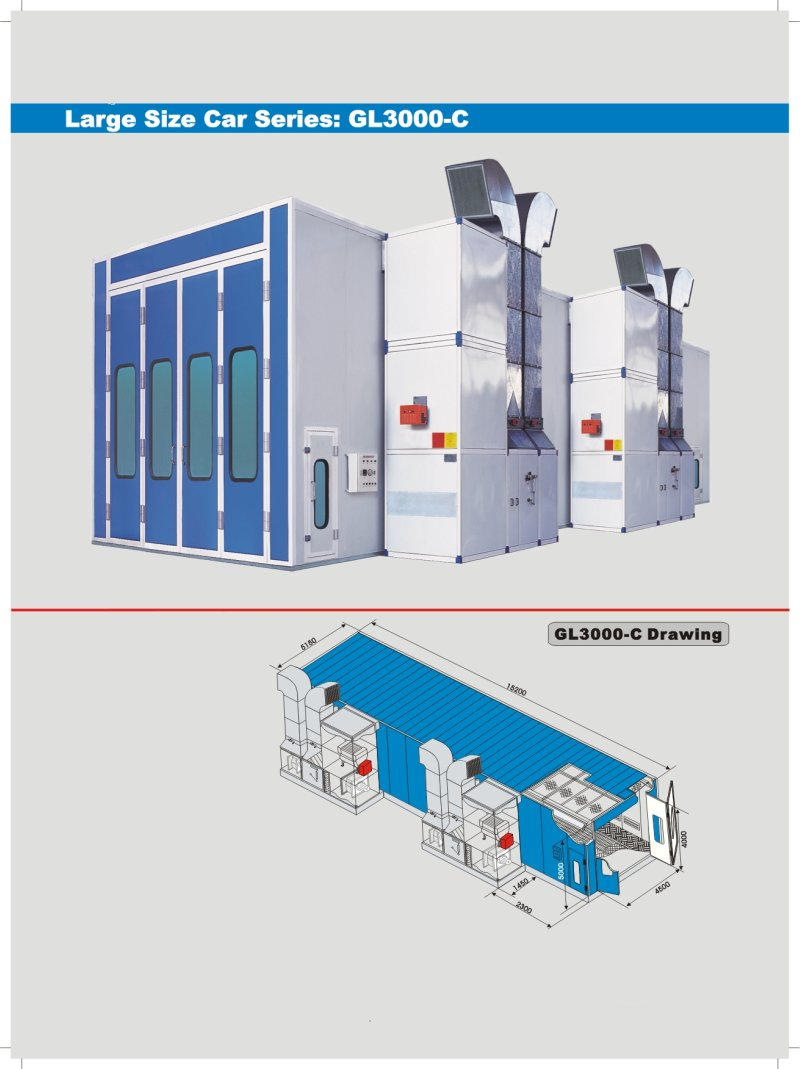

DE HAVILLAND X21000 TRUCK SPRAY BOOTH
|
|
DE HAVILLAND X21000/GL3000 |
|
External Size(M) |
15.2X6.6X5.0 |
|
Internal size(M) |
15.0X5.0X4.5 |
|
Color and front door construction |
Front blue(front door 4 parts), rest white |
|
Thickness of steel(mm) |
0.426 |
|
Filled material thickness |
EPS |
|
Fan capacity(M3/S) |
72000 |
|
Air velocity (m/s) |
0.3-0.5 |
|
Air ventilation (times/h) |
264 |
|
Max Drying Temperature |
|
|
Oil consumption (kg/piece) |
18-30 |
|
Power (KW) |
46 |
|
Intake Fan(KW) |
11×2 |
|
Exhausted Fan(KW) |
11×2 |
|
Filter |
Imported |
|
Filter Supporter |
Reticular filter supporter |
|
Control Panel |
Imported |
|
Top Light Box |
20x4×40W(Steel made) |
|
Side Light Box |
20x2×40W(upright) |
|
Generator Frame |
Aluminum joint×2 |
|
Heat exchanger |
|
|
Damper |
Automatic pneumatic circular damper with VCD blinder x 2 |
|
Burner |
Italy RIELLO×2 |
|
Front Door |
4 parts with door frame |
|
Safety Door |
2 |
|
Basement |
-- |
|
Ducting |
Standard flange ducting |
|
Environmental protection |
-- |
|
Floor |
2 rows of grids |
|
Ramp |
-- |

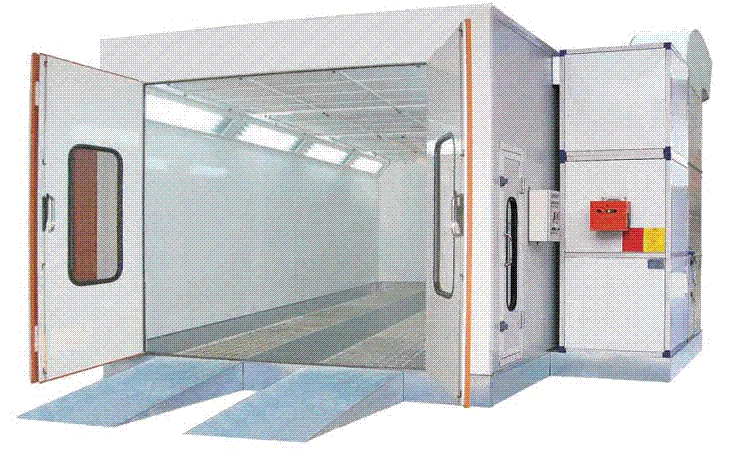

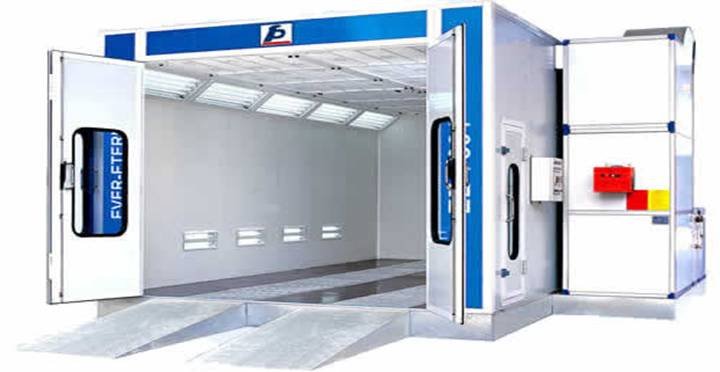

DE HAVILLAND X9000 SPRAY BOOTH
 |  |
Full downdraft airflow during spraying and curing cycles. Full service done on spray booths . DIY service kits available . All spares and parts available .
|
|

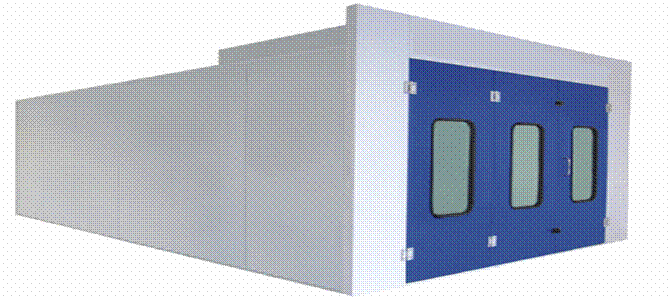

DE HAVILLAND X7000 BASELESS - SEMI DOWNDRAFT SPRAY BOOTH
|
Item No. |
X7000E |
|
Overall size(m) |
8.1X4.0X3.2 |
|
Inner size (m) |
6.9X3.9X2.7 |
|
Entrance width |
3.0m |
|
Entrance height |
2.7m |
|
Air flow volume |
17000m3/h |
|
Air Velocity (m/s) |
0.2-0.25 |
|
Power (KW) |
7 |
|
wall board Polyethelene |
50mm |
DE HAVILLAND X7000E BASELESS SPECIFICATIONS
Semi downdraft( entrance top to rear bottom) airflow during spraying .
Outlet filtered .
Dual surface insulated panel construction
Standard 3-wing insulated main doors with pressure lock
Exhaust fan installed behind the booth insulated panel construction
Wall board: 50mm, poly inside, 0.376 mm steel thickness
Lighting
Philips fluorescent tubes inside the booth (TOP CORNERS)
Quantity: 30pc
GENERATING GROUP
Electrical control panel, provides the time,
needed in program of spraying and painting
All electric parts are CE certificated.
Siemens technology blower with large volume air flow
and low noise. Motor and vane are separated .
